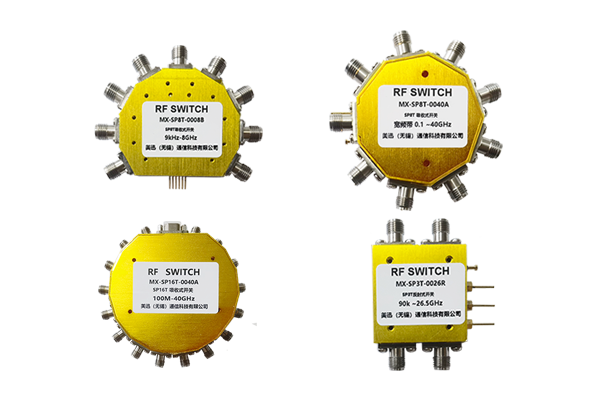

Pin Switches

● High-Speed Signal Switching

● High-Isolation Design

● Wideband Compatibility

● Low Insertion Loss Characteristics

● Multi-Channel Control Interface Integration

● Long Lifespan and High Reliability

Pin Switches img
Pin Switches img
Manual catalog
Part No.ItemFrequency rangeMain SpecificationConnector TypeMaterialDriverSize(mm)
MX-SPST-0040RL SPST Reflective switch 9kHz-40GHz Insert loss 2.5dB,isolation 30dB,power 0.25W 2.92mm Female Gold-plated brass VD=+5V，VC=TTL 30x20x9.5
MX-SPST-0040RH SPST Reflective switch 9kHz-40GHz Insert loss 3.5dB,isolation 45dB,power 0.25W 2.92mm Female Gold-plated brass VD=-5V，VC=TTL 30x20x9.5
MX-SPDT-0050RL SPDT Reflective switch 9kHz-50GHz Insert loss 3dB,isolation 40dB,power 0.25W 2.4mm Female Gold-plated brass VD=-5V，VC=TTL 30x30x9.5
MX-SPDT-0050RH SPDT Reflective switch 9kHz-50GHz Insert loss 5dB,isolation 70dB,power 0.25W 2.4mm Female Gold-plated brass VD=-5V，VC=TTL 30x30x9.5
MX-SPDT-0067RL SPDT Reflective switch 0.1-67GHz Insert loss 4dB,isolation 25dB,power 0.25W 1.85mm Female Gold-plated brass VD=+5V，VC=TTL 30x40x9.5
MX-SPDT-0067RH SPDT Reflective switch 0.1-67GHz Insert loss 5.5dB,isolation 45dB,power 0.25W 1.85mm Female Gold-plated brass VD=+5V，VC=TTL 30x40x9.5
MX-SPDT-0008N SPDT Reflective switch 0.1-8GHz Insert loss 1.2dB,isolation 40dB,power 10W SMA Female Gold-plated brass 0V/-40V 30x30x9.5
MX-SPDT-0018N SPDT Reflective switch 0.1-18GHz Insert loss 2.5dB,isolation 40dB,power 10W SMA Female Gold-plated brass 0V/-40V 30x30x9.5
MX-SPDT-0220RL SPDT Reflective switch 2-20GHz Insert loss 2dB,isolation 30dB,power 0.25W SMA Female Gold-plated brass VD=+5V，VC=TTL 30x30x9.5
MX-SPDT-0220RH SPDT Reflective switch 2-20GHz Insert loss 3.5dB,isolation 50dB,power 0.25W SMA Female Gold-plated brass VD=+5V，VC=TTL 30x30x9.5
MX-SPDT-1040RL SPDT Reflective switch 10-40GHz Insert loss 2dB,isolation 30dB,power 0.25W 2.92mm Female Gold-plated brass VD=+5V，VC=TTL 30x30x9.5
MX-SPDT-1040RH SPDT Reflective switch 10-40GHz Insert loss 3dB,isolation 50dB,power 0.25W 2.92mm Female Gold-plated brass VD=+5V，VC=TTL 30x30x9.5
MX-SP3T-0008 SP3T Absorption switch 90kHz-8GHz Insert loss 1.5dB,isolation 40dB,power 0.25W SMA Female Aluminum alloy VD=+5V，VC=TTL 32x32x10
MX-SP3T-0220R SP3T Reflective switch 2-20GHz Insert loss 2dB,isolation 40dB,power 0.5W SMA Female Aluminum alloy VD=+5V，VC=TTL 32x32x14
MX-SP3T-1040R SP3T Reflective switch 10-40GHz Insert loss 2.5dB,isolation 40dB,power 0.5W 2.92mm Female Aluminum alloy VD=+5V，VC=TTL 32x32x14
MX-SP3T-0040R SP3T Reflective switch 0.1-40GHz Insert loss 3.5dB,isolation 40dB,power 0.25W 2.92mm Female Aluminum alloy VD=+5V，VC=TTL 32x32x14
MX-SP3T-0050R SP3T Reflective switch 0.1-50GHz Insert loss 4dB,isolation 35dB,power 0.25W 2.4mm Female Aluminum alloy VD=+5V，VC=TTL 32x32x14
MX-SP4T-0006 SP4T Absorption switch 0.1-6GHz Insert loss 1dB,isolation 35dB,power 0.5W SMA Female Aluminum alloy VD=+5V，VC=TTL 40x40x10
MX-SP4T-0220R SP4T Reflective switch 2-20GHz Insert loss 2dB,isolation 35dB,power 0.5W SMA Female Aluminum alloy VD=+5V，VC=TTL Special
MX-SP4T-0220A SP4T Absorption switch 2-20GHz Insert loss 3.5dB,isolation 55dB,power 0.5W SMA Female Aluminum alloy VD=+5V，VC=TTL Special
MX-SP4T-1040R SP4T Reflective switch 10-40GHz Insert loss 2.5dB,isolation 35dB,power 0.5W 2.92mm Female Aluminum alloy VD=+5V，VC=TTL Special
MX-SP4T-1040A SP4T Absorption switch 10-40GHz Insert loss 4dB,isolation 55dB,power 0.5W 2.92mm Female Aluminum alloy VD=+5V，VC=TTL Special
MX-SP6T-1040R SP6T Reflective switch 10-40GHz Insert loss 4dB,isolation 30dB,power 0.5W 2.92mm Female Aluminum alloy VD=±5V，VC=TTL Special
MX-SP6T-1040RH SP6T Reflective switch 10-40GHz Insert loss 5.5dB,isolation 55dB,power 0.5W 2.92mm Female Aluminum alloy VD=±5V，VC=TTL Special
MX-SP6T-1040A SP6T Absorption switch 10-40GHz Insert loss 6dB,isolation 55dB,power 0.2W 2.92mm Female Aluminum alloy VD=±5V，VC=TTL Special
MX-SP6T-0040R SP6T Reflective switch 0.1-40GHz Insert loss 5dB,isolation 30dB,power 0.5W 2.92mm Female Aluminum alloy VD=±5V，VC=TTL Special
MX-SP6T-0040RH SP6T Reflective switch 0.1-40GHz Insert loss 6dB,isolation 55dB,power 0.5W 2.92mm Female Aluminum alloy VD=±5V，VC=TTL Special
MX-SP6T-0040A SP6T Absorption switch 0.1-40GHz Insert loss 6.5dB,isolation 55dB,power 0.2W 2.92mm Female Aluminum alloy VD=±5V，VC=TTL Special
MX-SP8T-0008A SP8T Absorption switch 10MHz-8GHz Insert loss 2dB,isolation 50dB SMA Female Aluminum alloy VD=+5V，VC=TTL Special
MX-SP8T-0008B SP8T Absorption switch 9kHz-8GHz Insert loss 2dB,isolation 50dB SMA Female Aluminum alloy VD=+5V，VC=TTL Special
MX-SP8T-1040R SP8T Reflective switch 10-40GHz Insert loss 3.5dB,isolation 25dB,power 0.25W 2.92mm Female Aluminum alloy VD=+5V，VC=TTL Special
MX-SP8T-0040R SP8T Reflective switch 100M-40GHz Insert loss 3.5dB,isolation 25dB,power 0.25W 2.92mm Female Aluminum alloy VD=+5V，VC=TTL Special
MX-SP8T-1050R SP8T Reflective switch 10-50GHz Insert loss 4dB,isolation 30dB,power 0.25W 2.4mm Female Aluminum alloy VD=+5V，VC=TTL Special
MX-SP8T-0040A SP8T Absorption switch 100M-40GHz Insert loss 8dB,isolation 45dB,power 0.25W 2.92mm Female Aluminum alloy VD=+5V，VC=TTL Special
MX-SP4T-0026R SP4T Reflective switch 90k ~26.5GHz High isolation 75dB SMA Female Aluminum alloy VD=+5V，VC=TTL Special
MX-SP3T-0026R SP3T Reflective switch 90k ~26.5GHz High isolation 75dB SMA Female Aluminum alloy VD=+5V，VC=TTL Special
MX-SP4T-0040R SP4T Reflective switch 90k ~40GHz High isolation 75dB 2.92mm Female Aluminum alloy VD=+5V，VC=TTL Special
MX-SP3T-0040R SP3T Reflective switch 90k ~40GHz High isolation 75dB 2.92mm Female Aluminum alloy VD=+5V，VC=TTL Special
About news
  • What Is RF and What Can It Do？
    What Is RF and What Can It Do？
    What is RF (radio frequency)? Learn the definition, frequency bands, properties, and the many uses of RF — from broadcasting and Wi-Fi to radar, medical imaging, and industrial heating.
    Sep 07 ,26
  • What is an RF Transfer Switch?
    What is an RF Transfer Switch?
    What is an RF transfer switch? Learn how RF transfer switches work, the main types (coaxial, waveguide, latching), key specifications, and how they are used in redundancy, ATE, and broadcast systems.
    Sep 07 ,26
  • How to Extend the Operating Lifespan of Electromechanical RF Switches
    How to Extend the Operating Lifespan of Electromechanical RF Switches
    How to extend the operating lifespan of electromechanical RF switches. Practical guidance on cold switching, derating, contact wear, environment, and maintenance for coaxial and waveguide RF switches.
    Sep 07 ,26
  • Understanding RF Attenuator Power Ratings: How to Avoid Burning Out Your Component
    Understanding RF Attenuator Power Ratings: How to Avoid Burning Out Your Component
    RF attenuator power ratings explained — average, peak, and pulsed power handling, derating strategies, common failure modes, and best practices to avoid burning out your RF attenuator.
    Sep 07 ,26
  • RF Component Selection for 5G Communication and Automated Wireless Testing
    RF Component Selection for 5G Communication and Automated Wireless Testing
    RF component selection for 5G and automated wireless testing — how to choose amplifiers, filters, antennas, switches, and connectors for FR1, FR2, mmWave, and ATE test systems.
    Sep 05 ,26

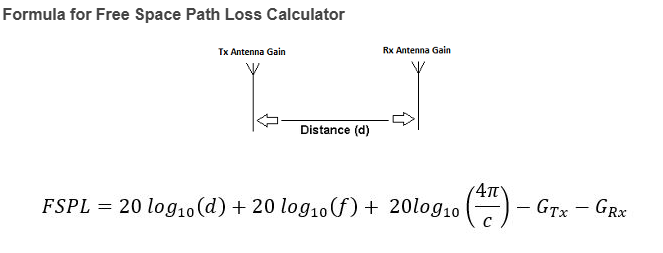

  • Free Space Path Loss Calculator
