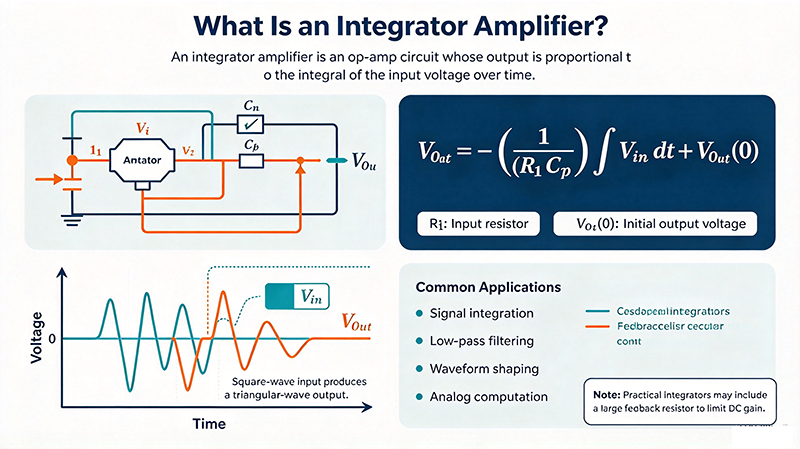

An integrator amplifier is an op-amp based active circuit whose output is the time integral of the input. Learn its circuit, transfer function, design steps, and applications.
Oct 04 ,26
Power Dividers
● Small size and high reliability.
● Good amplitude and phase balance.
● Frequency coverage: DC - 67GHz broadband.
● Series products with small size, compact structure, wide frequency band, high amplitudebalance andphase balance indicators.
● Widely used in military, aerospace, communication and other fields for broadband signal power division, synthesis, power calibration, power monitoring and other occasions.
| Part No. | Frequency range (GHz) | No. of ways | Phase balance (max) | Amplitude Balance (dB.max) | Insert loss (dB.max) | VSWR (max) | Isolation (dB.min) | Power (W) | Connector | TDS |
|---|---|---|---|---|---|---|---|---|---|---|
| GF1SF2W-0.5/2 | 0.5~2 | 2 | ±2° | ±0.2 | 0.5 | 1.2 | 20 | 30 | SMA-F | Download |
| GF1SF2W-0.1/4 | 0.1~4 | 2 | ±3° | ±0.2 | 2 | 1.4 | 20 | 30 | SMA-F | Download |
| GF1SF2W-0.4/6 | 0.4~6 | 2 | ±2° | ±0.2 | 1.2 | 1.25 | 20 | 30 | SMA-F | Download |
| GF1NF2W-0.4/6 | 0.4~6 | 2 | ±2° | ±0.2 | 1.2 | 1.25 | 20 | 30 | N-F | Download |
| GF1SF2W-0.5/6 | 0.5~6 | 2 | ±2° | ±0.2 | 1 | 1.4 | 20 | 30 | SMA-F | Download |
| GF1SF2W-2/18 | 2~18 | 2 | ±4° | ±0.3 | 1 | 1.35 | 18 | 20 | SMA-F | Download |
| GF1SF2W-2/26.5 | 2~26.5 | 2 | ±4° | ±0.4 | 1.2 | 1.5 | 17 | 20 | SMA-F | Download |
| GF1KF2W-0.5/40 | 0.5~40 | 2 | ±5° | ±0.4 | 3 | 1.6 | 17 | 20 | 2.92-F | Download |
| GF1KF2W-2/40 | 2~40 | 2 | ±4° | ±0.4 | 1.5 | 1.5 | 17 | 20 | 2.92-F | Download |
| GF1KF2W-6/40 | 6~40 | 2 | ±5° | ±0.5 | 1.2 | 1.6 | 16 | 20 | 2.92-F | Download |
| GF1KF2W-10/40 | 10~40 | 2 | ±5° | ±0.5 | 1.5 | 1.6 | 16 | 20 | 2.92-F | Download |
| GF124F2W-10/50 | 18~50 | 2 | ±8° | ±0.8 | 1.9 | 1.8 | 14 | 10 | 2.4-F | Download |
| GF1SF4W-0.1/0.4 | 0.1~0.4 | 4 | ±3° | ±0.3 | 1 | 1.25 | 20 | 30 | SMA-F | Download |
| GF1SF4W-0.5/2 | 0.5~2 | 4 | ±3° | ±0.2 | 0.8 | 1.3 | 20 | 30 | SMA-F | Download |
| GF1SF4W-0.1/4 | 0.1~4 | 4 | ±8° | ±0.4 | 4 | 1.35 | 18 | 30 | SMA-F | Download |
| GF1SF4W-2/18 | 2~18 | 4 | ±6° | ±0.4 | 1.6 | 1.5 | 18 | 20 | SMA-F | Download |
| GF1SF4W-2/26.5 | 2~26.5 | 4 | ±6° | ±0.5 | 2 | 1.7 | 16 | 20 | SMA-F | Download |
| GF1SF4W-18/26.5 | 18~26.5 | 4 | ±5° | ±0.4 | 1 | 1.5 | 16 | 20 | SMA-F | Download |
| GF1KF4W-1/40 | 1~40 | 4 | ±7° | ±0.5 | 4.8 | 1.7 | 16 | 20 | 2.92-F | Download |
| GF1KF4W-6/40 | 6~40 | 4 | ±6° | ±0.5 | 3 | 1.6 | 16 | 20 | 2.92-F | Download |
| GF1KF4W-10/40 | 10~40 | 4 | ±5° | ±0.4 | 1.5 | 1.5 | 16 | 20 | 2.92-F | Download |
| GF1SF8W-0.5/2 | 0.5~2 | 8 | ±4° | ±0.3 | 1.2 | 1.25 | 20 | 30 | SMA-F | Download |
| GF1SF8W-0.5/6 | 0.5~6 | 8 | ±4° | ±0.3 | 2.8 | 1.25 | 20 | 30 | SMA-F | Download |
| GF1SF8W-5/12 | 5~12 | 8 | ±4° | ±0.3 | 1.2 | 1.45 | 18 | 20 | SMA-F | Download |
| GF1SF8W-2/18 | 2~18 | 8 | ±8° | ±0.6 | 3 | 1.8 | 16 | 20 | SMA-F | Download |
| GF1SF8W-2/26.5 | 2~26.5 | 8 | ±7° | ±0.6 | 5.8 | 1.6 | 16 | 20 | SMA-F | Download |
| GF1KF8W-18/26.5 | 18~26.5 | 8 | ±8° | ±0.5 | 1.6 | 1.6 | 16 | 20 | 2.92-F | Download |
| GF1KF8W-6/40 | 6~40 | 8 | ±7° | ±0.7 | 3.2 | 2.2 | 15 | 20 | 2.92-F | Download |
| GF1KF8W-16/40 | 16~40 | 8 | ±8° | ±0.6 | 2.5 | 1.8 | 15 | 20 | 2.92-F | Download |
| GF1SF16W-2.5/4 | 2.5-4 | 16 | ±5° | ±0.3 | 1.0 | 1.4 | 18 | 20 | SMA-F | Download |
| GF2SF2W-0/8 | DC~8 | 2 | ±5° | ±0.5 | 6.5 | 1.2 | 11.8 | 1 | SMA-F | Download |
| GF2SF2W-0/18 | DC~18 | 2 | ±5° | ±0.5 | 6.8 | 1.3 | 11.8 | 1 | SMA-F | Download |
| GF2SF2W-0/26.5 | DC~26.5 | 2 | ±6° | ±0.5 | 7 | 1.3 | 11.8 | 1 | SMA-F | Download |
| GF2KF2W-0/40 | DC~40 | 2 | ±5° | ±0.4 | 7.5 | 1.4 | 11 | 1 | 2.92-F | Download |
| GF224F2W-0/50 | DC~50 | 2 | ±5° | ±0.5 | 7.6 | 1.5 | 11 | 0.5 | 2.4-F | Download |
| GF218F2W-0/67 | DC~67 | 2 | ±7° | ±0.8 | 7.8 | 1.7 | 11 | 0.5 | 1.85-F | Download |
| GF2SF4W-0/8 | DC~8 | 4 | ±6° | ±0.8 | 13 | 1.2 | 10 | 1 | SMA-F | Download |
| GF2SF4W-0/18 | DC~18 | 4 | ±8° | ±0.8 | 14 | 1.35 | 10 | 1 | SMA-F | Download |
| GF2SF4W-0/26.5 | DC~26.5 | 4 | ±8° | ±0.8 | 15 | 1.5 | 9 | 1 | SMA-F | Download |

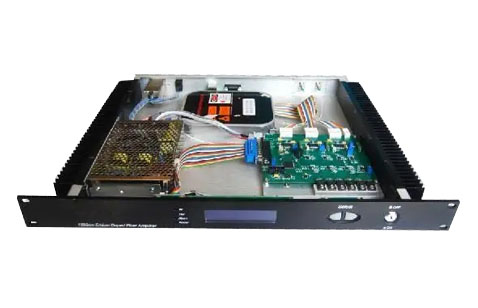

Amplifiers

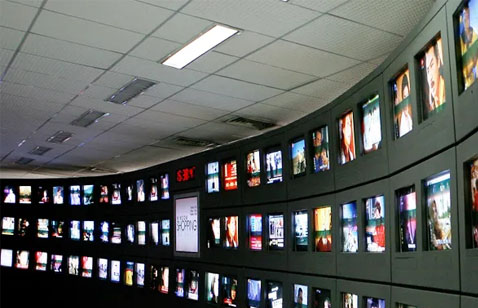

Broadcast and television

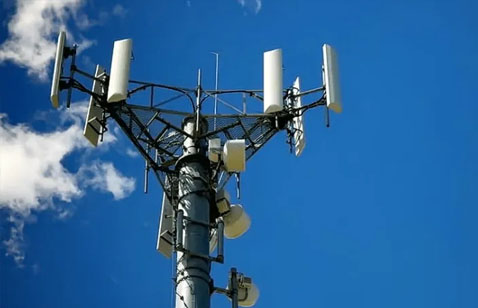

Base station

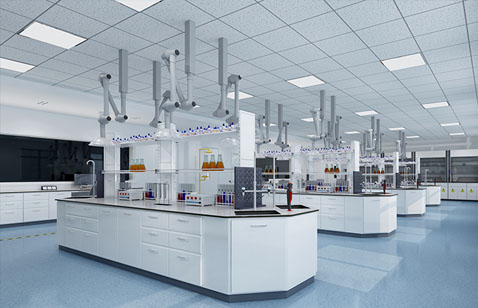

Laboratory test
-
-

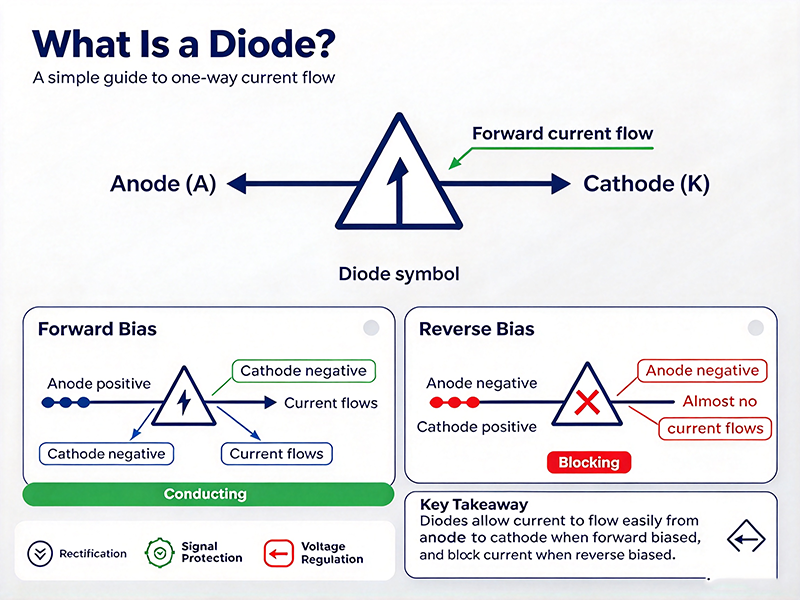

A diode is a two-terminal semiconductor device that allows current to flow in one direction. Learn how a PN-junction diode works, its main types, parameters, and how to select the right diode for your circuit.Oct 02 ,26 -
